15.6‘’ Meeting room Series Digital Signage
Model: WA1001
Main Feature

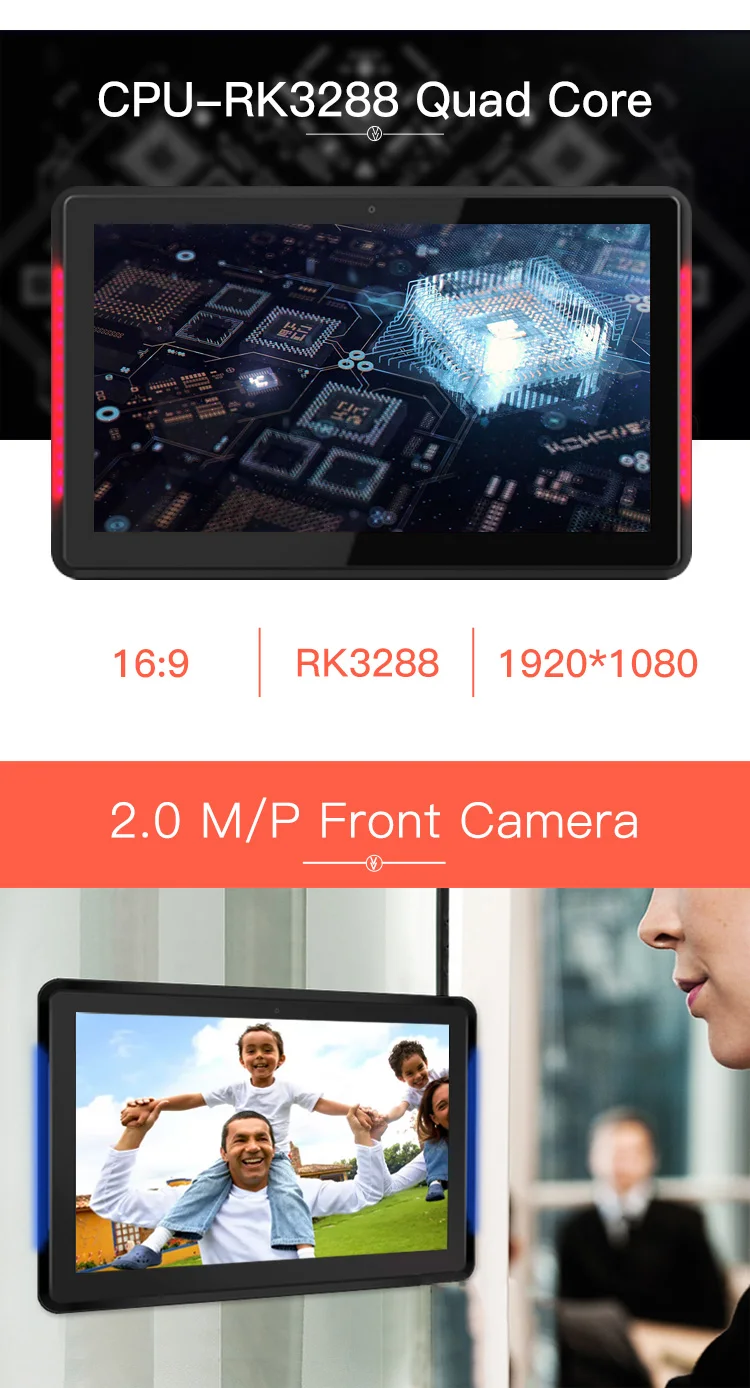

*Main IC : RK3288,Quad-core cortex A17,1.8G
* Android 5.1
*1920*1080 IPS ; 2G/8GB
*Adapter,12V/2A
Meeting Room SERIES DIGITAL SIGNAGE 15.6″ With POE&LED Light Bar
10.1″ /13.3″ /15.6″-inch digital signage and advertising display Android tablet with VESA mount
Product features:
OS: Android 5.1

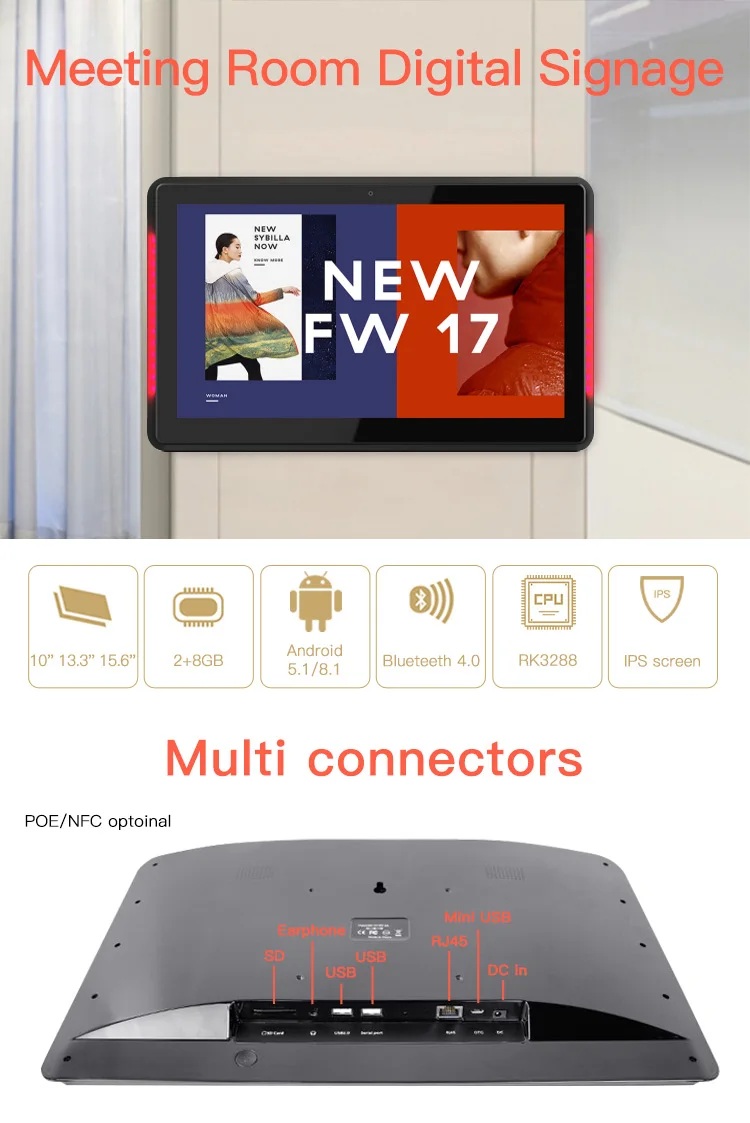

Various IO ports: DC in, micro USB, OTG, RJ45(PoE optional), USB 2.0 host, serial port, 3.5mm audio jack output, SD card slot, microphone
Connection: supports Ethernet RJ45, Wi-Fi 802.11b/g/n, Bluetooth 4.0 IR Receiver (optional), Hu-motion (optional)
Built for 24/7 use: strong durability supported to present business messaging 24/7
Specifications:
| System | CPU | RK3288,Quad-core cortex A17,1.8G | |||||||||||||
| RAM | 2GB | ||||||||||||||
| Internal memory | 8GB | ||||||||||||||
| Operation system | Android 5.1 | ||||||||||||||
| Touch screen | 10-Point capacitive touch | ||||||||||||||
| Display | Panel | 15.6″LCD IPS panel | |||||||||||||
| Resolution | 1920*1080 | ||||||||||||||
| Active area | 344.16(H)x193.59mm(V) | ||||||||||||||
| Display mode | Normally black ,IPS | ||||||||||||||
| Viewing angle | 85/85/85/85(L/R/U/D) | ||||||||||||||
| Contrast ratio | 800 | ||||||||||||||
| Luminance | 250cd/m2 | ||||||||||||||
| Aspect Ratio | ,16:10 | ||||||||||||||
| Network | WiFi | 802.11b/g/n | |||||||||||||
| Ethernet | 100M/1000M ethernet | ||||||||||||||
| Buletooth | Bluetooth 4.0 | ||||||||||||||
| Interface | Card slot | SD card | |||||||||||||
| USB | USB Host | ||||||||||||||
| Micro USB | Micro USB OTG | ||||||||||||||
| USB | USB for serial | ||||||||||||||
| RJ45 with POE | RJ45 | ||||||||||||||
| POE | IEEE802.3at/af | ||||||||||||||
| Power jack | DC power input | ||||||||||||||
| Earphone | 3.5mm earphone + Micphone | ||||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | |||||||||||||
| Audio format | MP3/WMA/AAC etc. | ||||||||||||||
| Photo | jpeg | ||||||||||||||
| VESA | 100x100mm | ||||||||||||||
| Speaker | 2*1.5W | ||||||||||||||

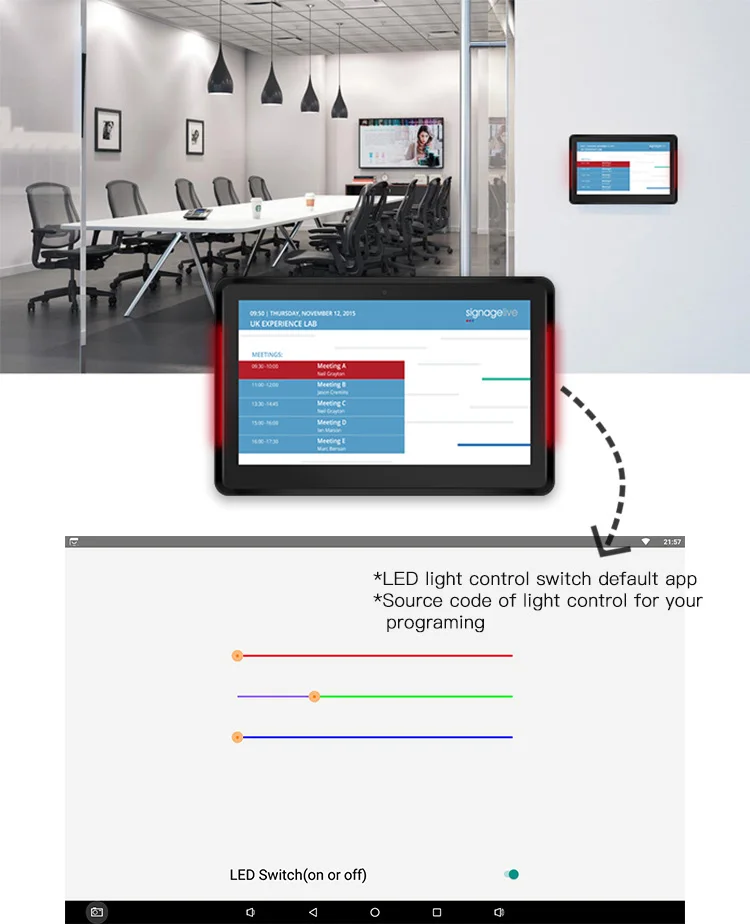

| LED Light bar | LED Light bar | ||||||||||||||
| Camera | 2.0M/P,Front camera | ||||||||||||||
| Language | Multi-language | ||||||||||||||
| Accessories | Adapter | Adapter,12V/2A | |||||||||||||
| User manual | yes | ||||||||||||||
| Product Measurement, mm | |||||||||||||||
| Unit (Without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | |||||||||||||
| L | W | H | L | W | H | L | W | H | |||||||
| 401.8mm | 252.9mm | 30.2mm | 493mm | 303mm | 70mm | 508mm | 372mm | 323mm | |||||||
| Unit (Without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 401.8mm | 252.9mm | 30.2mm | 493mm | 303mm | 70mm | 508mm | 372mm | 323mm |
| Net(kg) | Net(kg) | Net | ||||||
| G.W | ||||||||
10PCS/CTNS
G.W.: 10KGS/CTNS
1* tablet pc
1* USB cable
1* OTG Cable
1* Charger
1* User Manual
1* Gift box
